Vertical wind vane, make a vertical wind vane, fiberglass

The vertical wind vane will be made of fiberglass.  The resin can be purchased at  Home Depot and the matting can be purchased on ebay.

The large round top and bottom plates as exactly the same.  I used MDF board from Home Depot and cut out the shape I needed.  I then waxed the board so the resin would not stick.  I then laid up five layers of fiberglass on the board and waited for it to cure.

The vertical vane is more complex as a shape so I made a fiberglass mold for those parts.  I have detailed how I made the mold.

This project is scheduled to last two months.  That is of course if the weather holds out.  It will be a little longer if it gets real cold.

Vertical wind vane, top cap, fiberglass, DIY

Here you can see the first part from the round mold made from MDF panels.  It is six feet in diameter.  The bump in the center will be where a grease seal is fitted.  The wind blows here all of the time and dust is a real problem.  The white edge will be cut off.  You see the panel after we have washed off the wax that came off the MDF panel.

Vertical wind vane mold, fiberglass, DIY

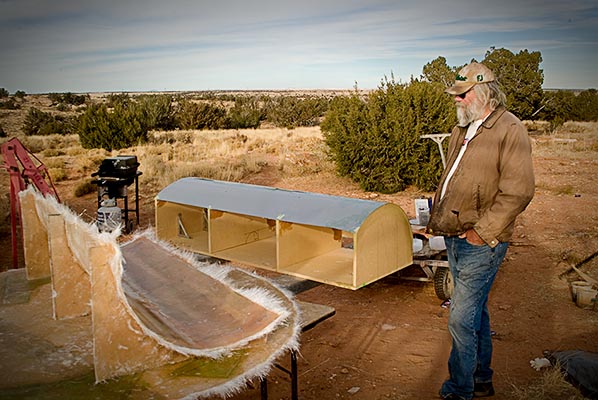

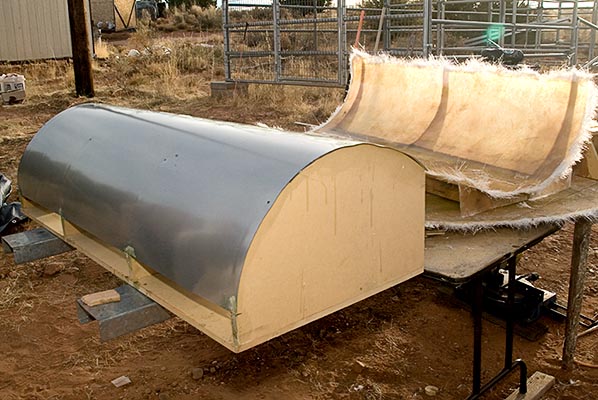

Here you can see the second round disc being made.  On top of the disc is the start of the vertical wind vane mold.  I cut out the shape I wanted and covered it with flexible sheet metal.  I then waxed the metal before laying the fiberglass on the metal surface.

Vertical wind vane, mold, fiberglass, DIY

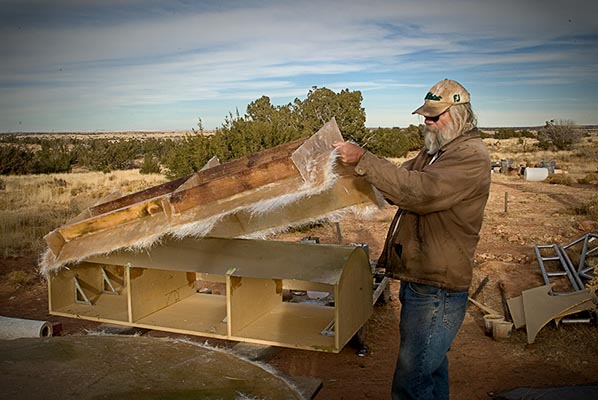

I added ribs to the curve that also acted as feet for the finished mold.  I added 2x4’s as well to make the whole assemble stiff.  I fiberglassed all of the parts together into one unit.  Here you can see me pull the mold from the sheet metal shape.  The mold was then washed to remove any wax that may have come off the metal.

Vertical wind vane, fibonacci curve, mold

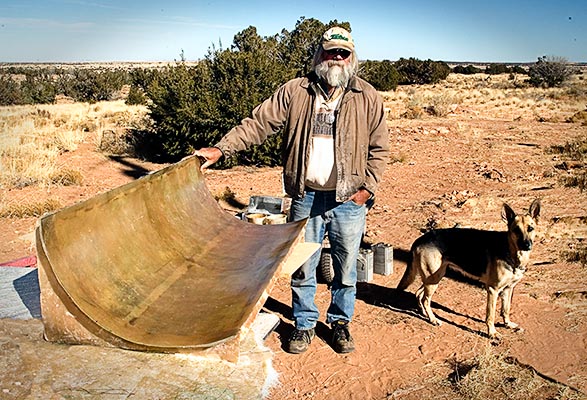

In this picture you can see the shape of the curve in the vertical wind vane.  The curve is part of a spiral that Fibonacci found a long time ago.  You can go to this youtube link to see more detail about the curve.  http://www.youtube.com/watch?v=KpBfbzxS1l4

Vertical wind vane, mold, water pump, DIY

Even though we took great care in making the sheet metal form the mold is not shaped right.  There are small defects that need to be sanded and filled.  Then the edges need to be cut so all of the edges are square and parallel.  Boards have to be added to stiffen the edges so they will hold a straight line.  Another two days of work.

Verical wind vane, finished mold, DIY, fiberglass

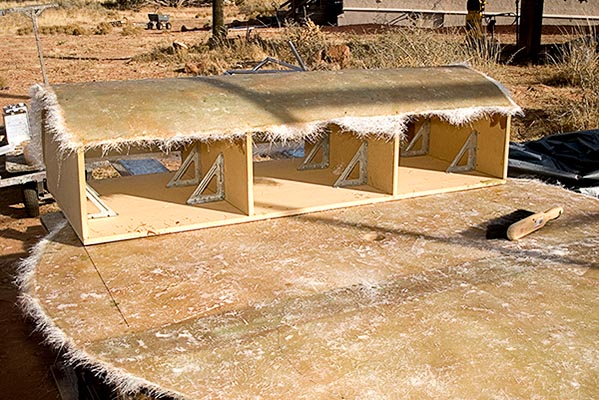

Here is the mold after the edges were supported and the edges trimmed square.  Wax is added to the surface and four layers of fiberglass was laid down on the curved surface. (not shown)
